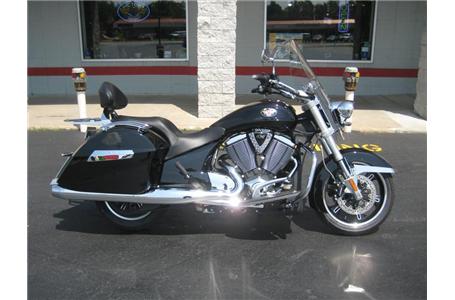

Stock #V237

This bike is loaded up with Stage 1 Exhaust, Light Bar, Tachometer Kit, Cruise Control, Chrome Front Fender Rail, Chrome Rear Fender Rail, Saddlebag Lid Rails, Heel Toe Shifter, Lock & Ride Passenger Backrest and Chrome Luggage Rack!

•21 Gallons of Cargo Capacity - Best in Class: The roomy, twin side storage units are weatherproof & feature strong, durable glass-filled nylon construction, have hinged lids with a lockable latch that can be operated with one hand.
•580 lbs. of Load Capacity - Best in Class: With one or two riders and a full load of touring cargo the Cross Roads is ready to roll. It has the most cargo space, adjustable suspension & Freedom® power for memorable 2-up touring.
•4.7 inches of Suspension Travel - Best in Class: The class-leading rear suspension features an air shock & coil spring. It's easy to adjust the air pressure to suit the passenger/cargo load and maintain the superb ride.
•106-Cubic-Inch Freedom® V-Twin: This 106ci/1731cc engine produces 92 HP & 109 ft-lbs. of torque, which is ample power for acceleration on-demand and highway cruising with one or two riders and cargo.
•6-Speed Overdrive Transmission: There's smooth shifting through the gears, and in the 6th - which is a true overdrive - the RPMs drop for smooth, efficient highway cruising. Plus, there's still power for passing without downshifting.
•92 Horsepower and 109-Foot-Pounds of Tourque: There's excellent throttle response, great acceleration, impressive torque and all the power needed to make good time on the road with one or two riders aboard.
•Traditional Highway Bar: Chrome tubular highway bars are standard. They provide tip-over protection and compliment the bike's chrome. They can also be equipped with accessory high pegs and driving lights.

Engine
•Engine Type: 4-stroke 50° V-Twin
•Cooling Type: Air / Oil
•Displacement: 106 ci / 1,731 cc
•Bore x Stroke: 101 x 108 mm
•Compression Ratio: 9.4:1
•Valve Train: Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
•Fuel System: Electronic Fuel Injection with dual 45mm throttle body
•Fuel Capacity: 5.8 gal. / 22 l
•Exhaust: Split dual exhaust with crossover
•Oil Capacity: 5.0 qts. (4.75 l)
•Charging System: 50 amps max output
•Battery: 12 volts / 18 amp hours
•Primary Drive: Gear drive with torque compensator
•Clutch: Wet, multi-plate
•Transmission: 6-speed constant mesh
•Final Drive: Carbon Fiber Reinforced Belt

Chassis Dimensions
•Length: 104.4 in. (2,652 mm)
•Wheelbase: 65.7 in. (1,670 mm)
•Seat Height: 26.25 in. (667 mm)
•Ground Clearance: 5.8 in. (148 mm)
•Rake/Trail: 29.0° / 5.6 in. (142 mm)
•Dry Weight: 745 lbs. (338 kg)
•GVWR: 1,360 lbs. (618 kg)
Suspension
•Front Suspension: Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in 130 mm travel
•Rear Suspension: Single, mono-tube gas, cast aluminum with constant rate linkage, 4.7 in/120 mm travel, air adjustable springs

Brakes
•Front Brake: Dual 300mm floating rotor with 4-piston caliper
•Rear Brake: 300mm floating rotor with 2-piston caliper

Wheels & Tires
•Front Wheel: 18 x 3.0 in.
•Rear Wheel: 16 x 5.0 in.
•Front Tire: 130/70R18 Dunlop Elite 3
•Rear Tire: 180/60R16 Dunlop Elite 3

Color Options
•Solid Colors: Solid Black, Solid Midnight Cherry
